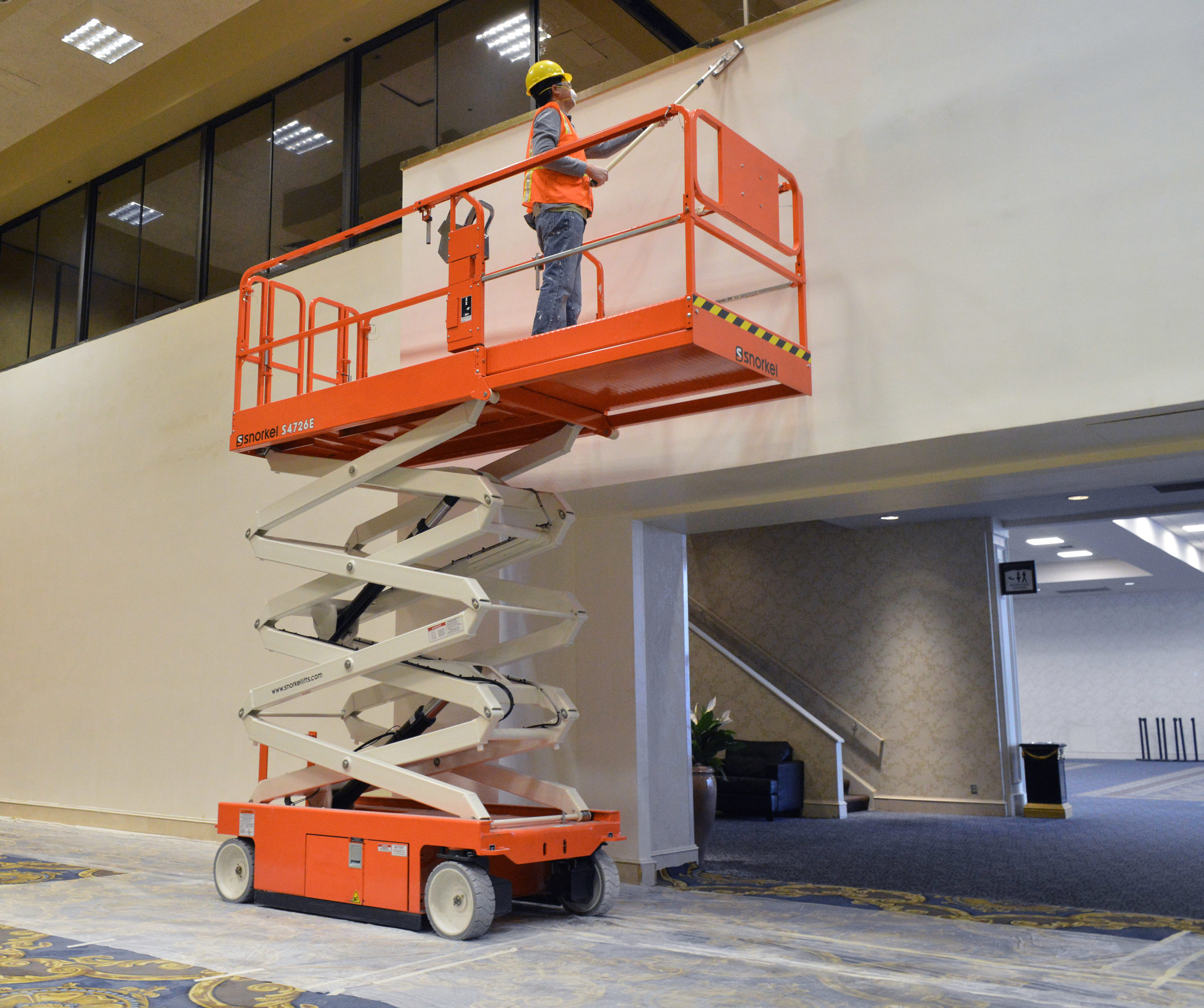

Snorkel S4726E Snorkel
Max. working height
32 ft
Max. platform height
26 ft
Platform size (stowed)
43 in x 84.38 in
Platform size (extended)
43 in x 132.38 in
Deck extension length
48 in
Overall length (with step)
90.6 in
Overall length (without step)
89 in
Overall width
47 in
Min. height (guardrails folded)
73 in
Stowed height
90.2 in
Ground clearance (stowed)
2.63 in
Ground clearance (elevated)
.75 in
Platform capacity (SWL)
1,000 lbs
Max. drive height
26 ft
Max. wind speed
28 mph
Max. drive speed (elevated)
0.3 mph
Max. drive speed (stowed)
2.0 mph
Raise / lower time
50 / 58 seconds
Gradeability
25%
Inside turning radius
10 in
Outside turning radius
95 in
Tires
15 in x 5 in non-marking rubber
Controls
Proportional
Drive system
2 wheel drive
Power source
24V DC battery electric
Charger
90 – 240V, 25 amp
Weight
4,750 lbs
- Roll-out deck extension with dual locks
- Non-marking tires
- Swing-out service trays
- Saloon-door style entry gates
- Descent alarm
- All motion alarm
- Proportional controls, including descent
- 3 persons indoor
- 2 persons indoor
- 1 person outdoor
- Loading pendant
- Power line to platform
- Platform overload system
- Flashing amber light
- Hour meter & on-board diagnostic display
- Integrated battery charger
- Battery condition indicator
- Crane & forklift points
- Dual lanyard attachment points
- Scissor stack roller slide plates (set of 2)
- 2 year parts & labor, 5 year structural warranty
- 110V AC 800W inverter
- Airline to platform
- Aircraft bumpguard package
- Panel carrier
- Environmental hydraulic oil
- Snorkel Guard™ secondary guarding system
- Snorkel OnSite™ telematics
- Pipe rack
- Top rail
Details
The Snorkel S4726E electric scissor lift is designed to handle the heavy loads. With a high lift capacity and spacious platform featuring roll-out extension deck, the S4726E can handle most applications. Constructed from heavy-duty steel, and designed for a long working life, the S4726E delivers a low total cost of ownership.
