Snorkel S3219E Snorkel
Max. working height
25 ft
Max. platform height
19 ft
Platform size (stowed)
28.25 in x 63.75 in
Platform size (extended)
28.25 in x 99.75 in
Deck extension length
36 in
Overall length (with step)
70.4 in
Overall length (without step)
68.3 in
Overall width
32 in
Min. height (guardrails folded)
65 in
Stowed height
83 in
Ground clearance (stowed)
2.63 in
Ground clearance (elevated)
.75 in
Platform capacity (SWL)
550 lbs
Max. drive height
19 ft
Max. wind speed
28 mph
Max. drive speed (elevated)
0.3 mph
Max. drive speed (stowed)
2.0 mph
Raise / lower time
20 / 36 seconds
Gradeability
25%
Inside turning radius
4 in
Outside turning radius
64.25 in
Tires
12 x 4 non-marking rubber
Controls
Proportional
Drive system
2 wheel drive
Power source
24V DC battery electric
Charger
90 – 240V, 25 amp
Weight
3,075 lbs
- Roll-out deck extension with dual locks
- Non-marking tires
- Swing-out service trays
- Saloon-door style entry gates
- Descent alarm
- All motion alarm
- 2 persons indoor
- 1 person outdoor
- Proportional controls, including descent
- Power line to platform
- Loading pendant
- Platform overload system
- Flashing amber light
- Hour meter & on-board diagnostics display
- Integrated battery charger
- Battery condition indicator
- Crane & forklift points
- Dual lanyard attachment points
- Scissor stack roller slide plates (set of 2)
- 2 year parts & labor, 5 year structural warranty
- Special paint colors
- 110V AC 800W inverter
- Airline to platform
- Aircraft bumpguard package
- Environmental hydraulic oil
- Snorkel Guard™ secondary guarding system
- Snorkel OnSite™ telematics
- Panel carrier
- Pipe rack
- Top rail
Details

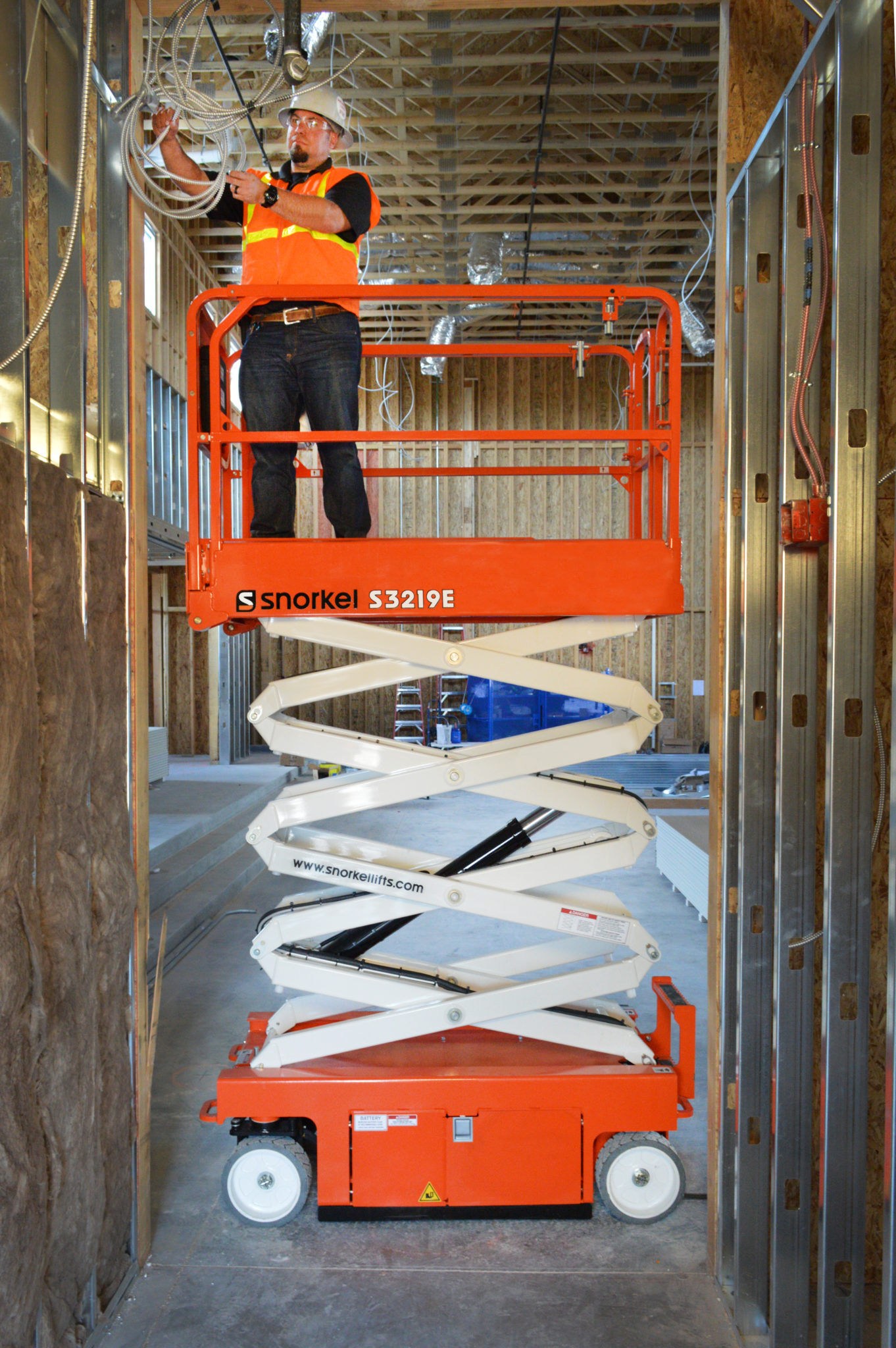

The Snorkel S3219E electric scissor lift packs big features in a compact size. Easily driven through a standard doorway, this scissor lift suits indoor and outdoor applications. A telescopic roll-out deck extension maximizes platform space and deep cycle batteries maximize working hours.
- Equipment Type
- Scissor Lifts / Aerial Lifts
