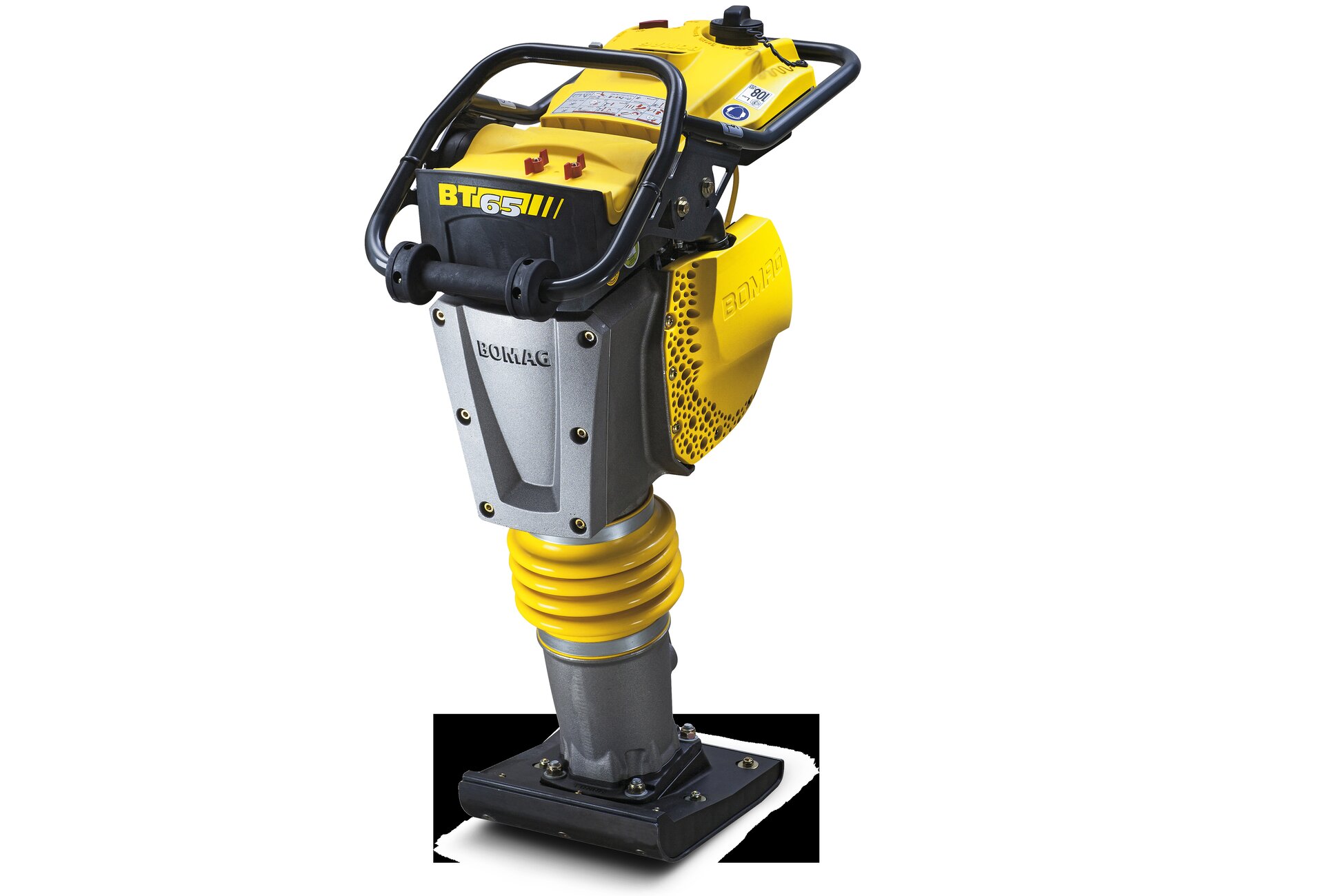

BT 65 Tamper BOMAG
Standard Equipment
Engine Protection System
-Protective engine covering
-Paper air filter system with two
stages
-Automatic oil level control
-Dual fuel filter system
Vibration insulated steering
handle
Self-cleaning air filter housing
Protective covering
Single point lifting device
Recoil starter
Plastic castor as loading aid
Infinitely variable frequency
Combination of engine stop/fuel
switch
h-/ rpm meter
3-2-1 Warranty
Optional Equipment
Transport device with puncture
proof wheels
Tamper foot widths
(160-330mm)
Tamper foot extensions
Special painting
Tool kit
Service Kit
Operator protection contact
breaker switch
TOUGH WARRANTY
Technical Data
BOMAG BT 65
Weights
Operating weight CECE ……………………………………. 150 lb
Basic weight ……………………………………………………. 148 lb
Dimensions
Working width (tamper plate) …………………………….. 11.0 in.
Driving Characteristics
Working speed max. ………………………………………… 65.6 ft/min
Area coverage max. ………………………………………….3,616.8 ft2/h
Drive
Engine manufacturer ………………………………………… Honda
Type ………………………………………………………………. GXR 120
Emission stage ………………………………………………… StageV/CARB P.3
Cooling …………………………………………………………… air
Number of cylinders …………………………………………. 1
Performance SAE J 1349 …………………………………. 3.8 HP
Fuel ……………………………………………………………….. Gasoline
Drive system …………………………………………………… mech.
Fuel consump. aver. during operation ……………….. 0.2 gal/h
Exciter system
Frequency ……………………………………………………….600.0-708.0 vpm
Impact force …………………………………………………….3,822 lb
Jumping height …………………………………………………2.8 in
Capacities
Fuel ……………………………………………………………….. 0.8 gal.
Bomag BT Tamper
Details
Maximum compaction performance. The most powerful tamper in its class
Made for frequent use with the highest demands and efficiency
Rammer, 150 lb class, 3,821 lbs. impact force
11″ x 13″ plate, Honda GXR120
